RS232 to DMX Converter Powerful Commands Wall Mount

Control DMX lighting directly from RS232 systems with the DS232-WM wall mount converter—compact, powerful, and automation-ready.

RS232 to DMX Converter Wall Mount
  • Compact Wall Mount Design
  • Powerful RS232 DMX Control
  • Supports 512 DMX Channels
  • 128 Scene Save And Recall
  • Multiple DMX Output Options
  • Reliable Automation Integration
  • Advanced Command String Support
SKU: DS232-WM Categories: , Tags: , , , , ,
Availability: Usually ships in 1-2 days

$339.00

339339
DS232 Input (Optional)
$60.00
DMX Output Options
$130.00
Comment
Addons Price: $0.00
Total Price: $339.00
Quick Specs
String Length96 Characters
DMX Channels512
Scene Storage128 Scenes
DMX Outputs1 or 4 Outputs
DMX InputOptional (Through & Capture)
Enclosure TypeWall Mount
Power Supply5VDC Included

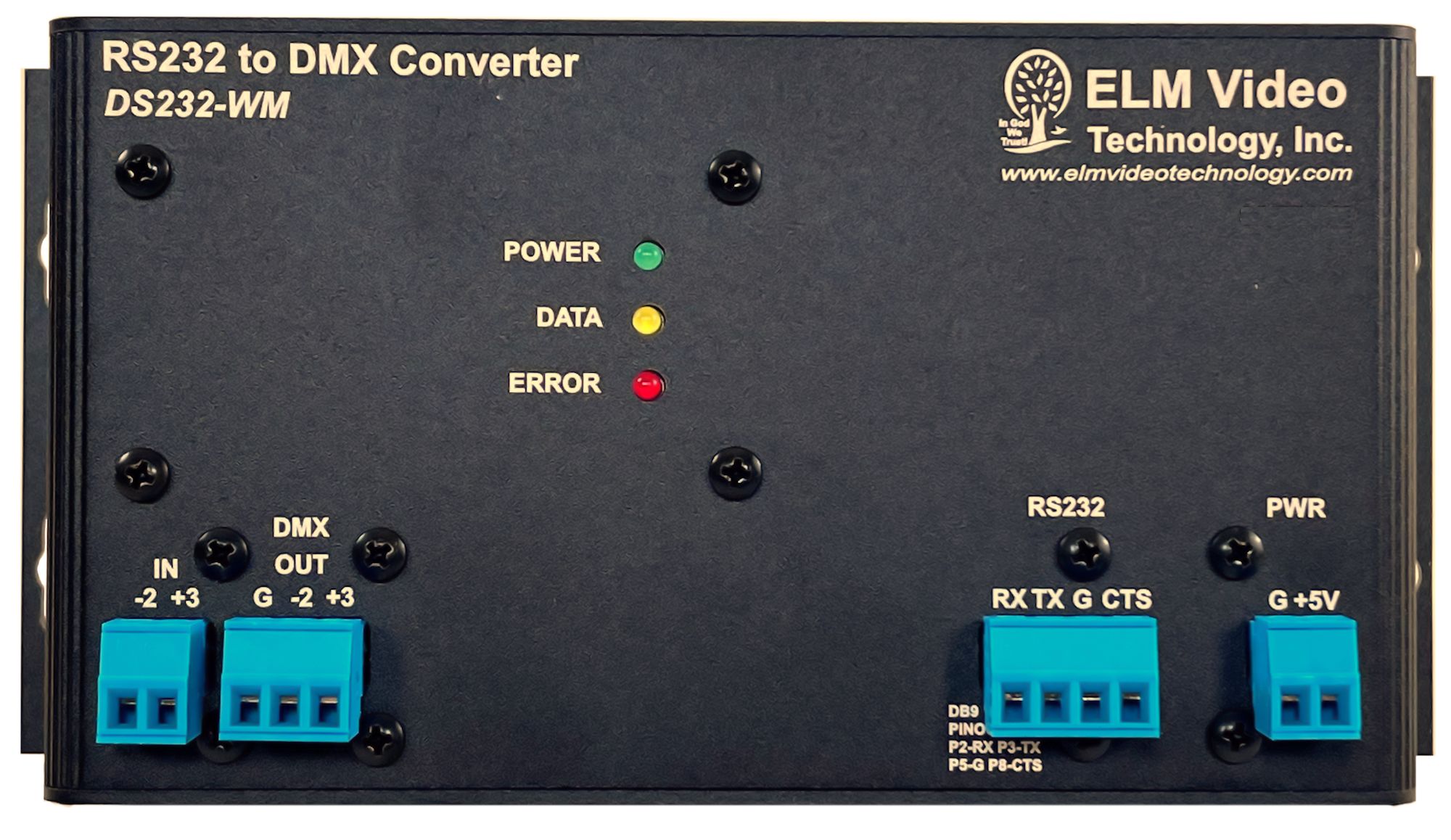

The DS232-WM is an RS232 to DMX converter controller driver in a compact wall mount enclosure. See the DS232 full description category page for a full product description. Includes the 5VDC power supply









Weight 28 oz
Dimensions 8 × 8 × 5 in
DIN DS232 Input Add Ons

,

DMX Output Options

,

Release Sept 2024: DS232 V5.1x Users Guide and Technical Specs

Software Revisions:

V4.01 Release 2019: Applies to and for DMX input unit – fixes buffer read delay DS232 Version 4 Users Guide and Technical Specs

V4.00 Release 2018: DMX input option added with DMX loop THROUGH/HOLD/NORMAL features

V3.00 Release Nov 2016: PCB design change

V2.10 Release May 2016: added Scene save and recall features added. DS232 Users Guide and Technical Specs V2.10 Version 2 pdf

V2.00 Release March 2016: added 512 channel support (previous 256), added CTS (Clear to Send) support, increased processor speed. DS232 Users Guide and Technical Specs V2.00

V1.01 Release February 2016: added processor reset upon “R” command

V1.00 Release Original DS232 Users Guide and Technical Specs V1.0 Version 1 pdf

Dimensions: 3″ x 6.2″ x 1.3″ (inches)

See the specifications tab DS232 for additional information

  • DMX input optional (use for DMX loop through and DMX capture and store as scenes)
  • Choose either 1 or 4 DMX outputs
