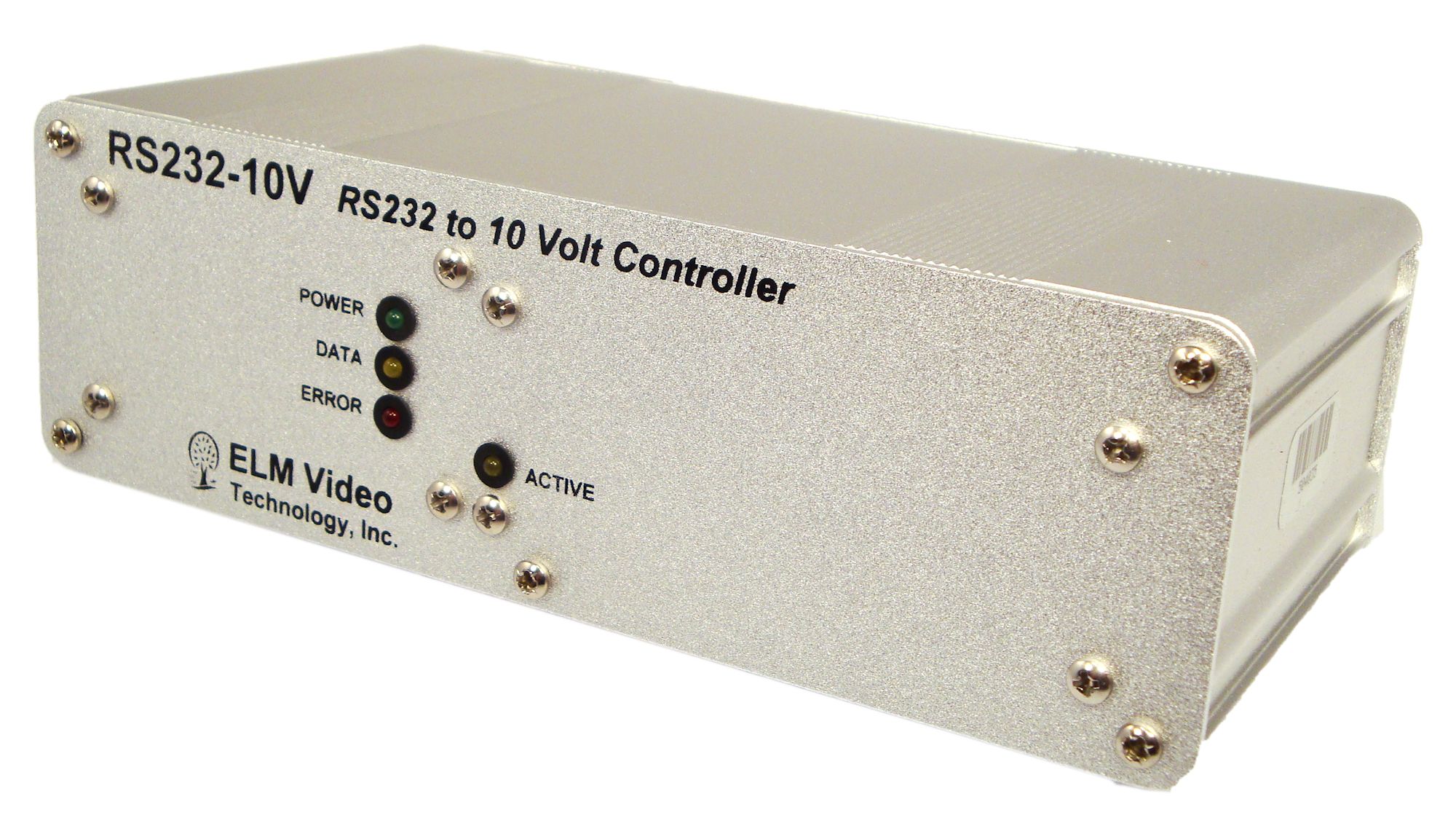

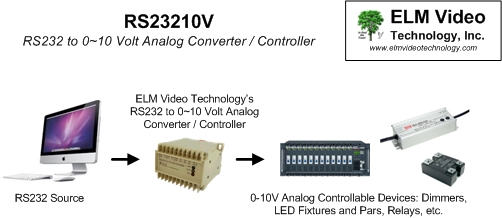

Receives an RS232 signal and converts to an 0-10 volt analog signal to control a variety of equipment. Equipped with […]
$449.00
Receives an RS232 signal and converts to an 0-10 volt analog signal to control a variety of equipment. Equipped with 8 channels, upgrade to 16. Available in an aluminum enclosure, mounting flanges available. See the RS232 to 0-10 volt analog converter controller category page for more information.
Includes +12VDC external power supply and Phoenix mating connector.
| Weight | 33.60000002963 oz |
|---|---|
| Dimensions | 3.7 × 6.7 × 2.1 in |
| DX10V Add Ons | |
| Select Options | |
| RS23210V Options | DMX Input 3 Pin XLR, DMX Input 5 Pin XLR, DMX Input Ethercon, No DMX Input |
RS23210V V5.10 Users Guide and Technical Specs
Software Revisions:
V4.01 Release Aug 2019: Applies to and for DMX input unit – fixes buffer read delay
V4.00 Release 2018: DMX input option added with DMX loop THROUGH/HOLD/NORMAL features
RS23210V V4 Users Guide and Technical Specs
Previous Software Revisions:
V3.00 Release Nov 2016: PCB design change
May 2016: Version 2.10 pdf – Scene save and recall features added RS23210V Users Guide and Technical Specs V2.10
March 2016: Version 2 pdf – V2.00 – added 512 channel support (previous 256), added CTS (Clear to Send) support, increased processor speed RS23210V Users Guide and Technical Specs V2.00
Brand: ELM Video Technology
Manufacturer: ELM Video Technology
Model: RS23210V
Name: RS232 to 0-10 Volt Converter Controller Driver
UL Listings: Power Supply, PCB pre populated
MPN: RS23210V
Dimensions: 6.7″W x 2.1″H x 3.7″D
RS232-PCB:
RS232 Input: 9600 Baud rate, 8, 1, None default. Programmable to: 19,200, 8, 1, Nonr
Command String Length: 96 characters
Command String Execute Timing: 100mS recommended

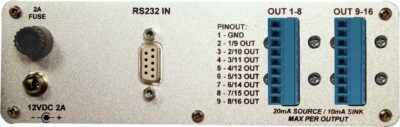

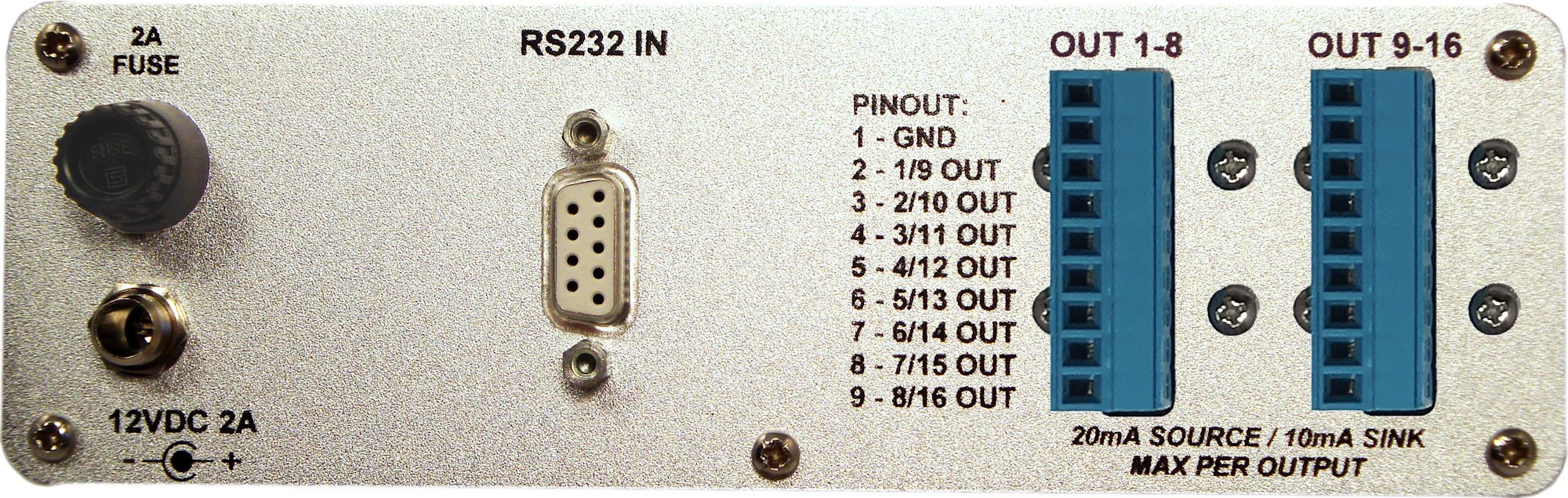

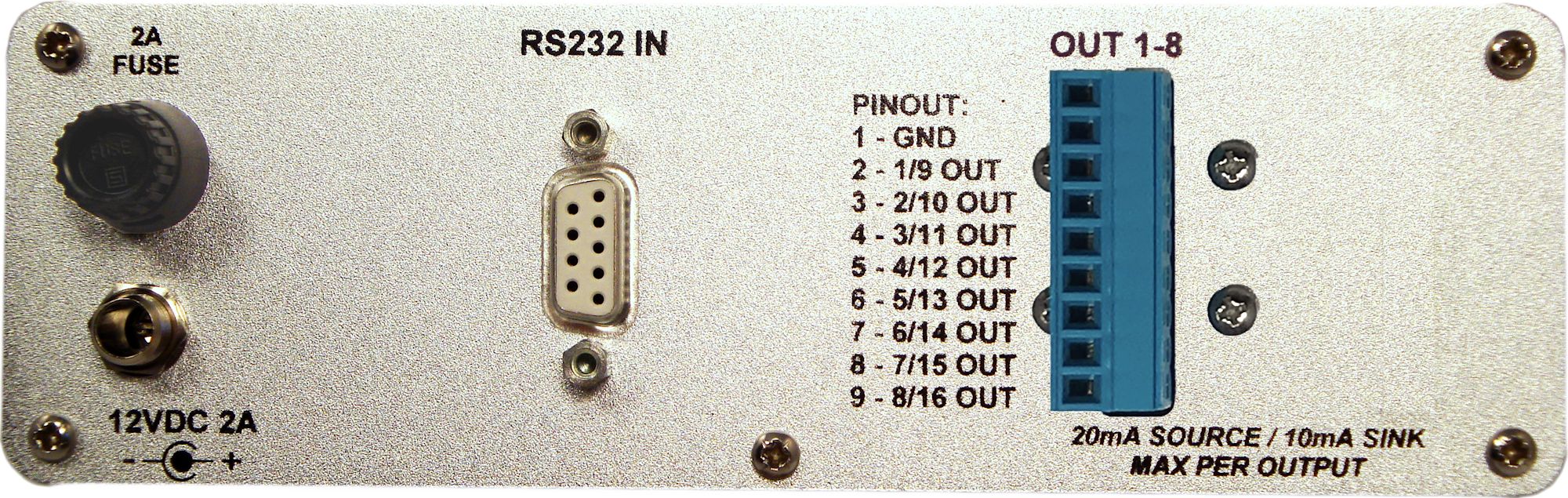

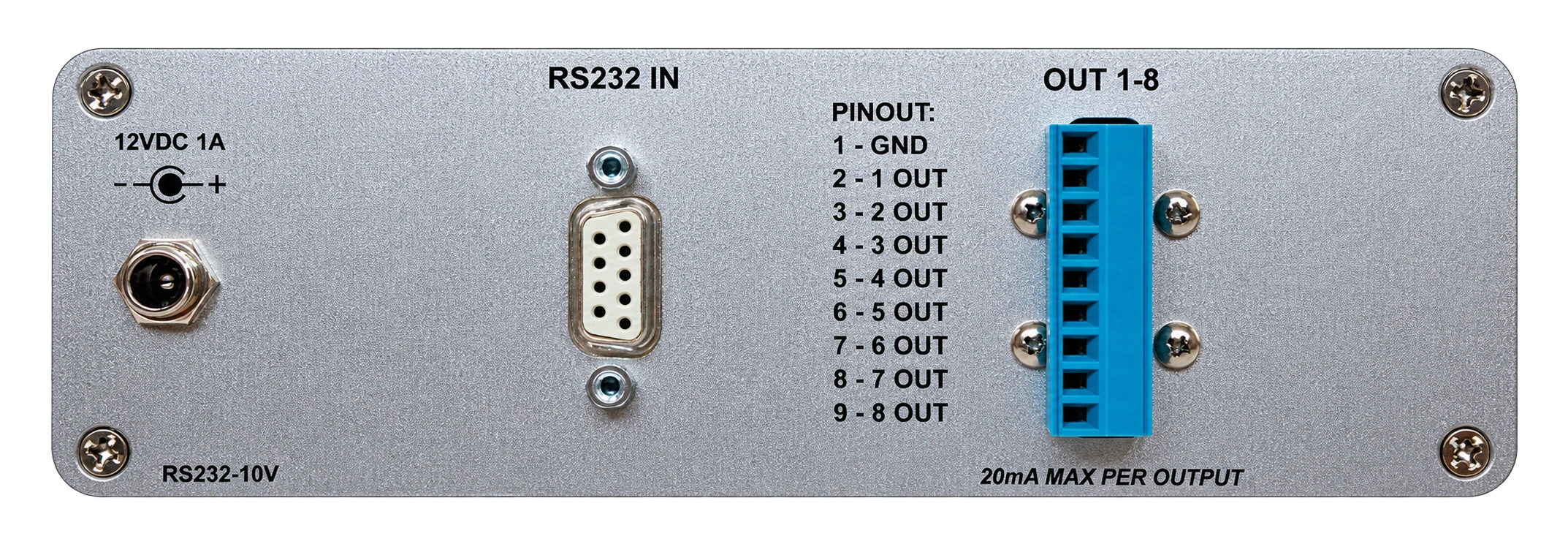

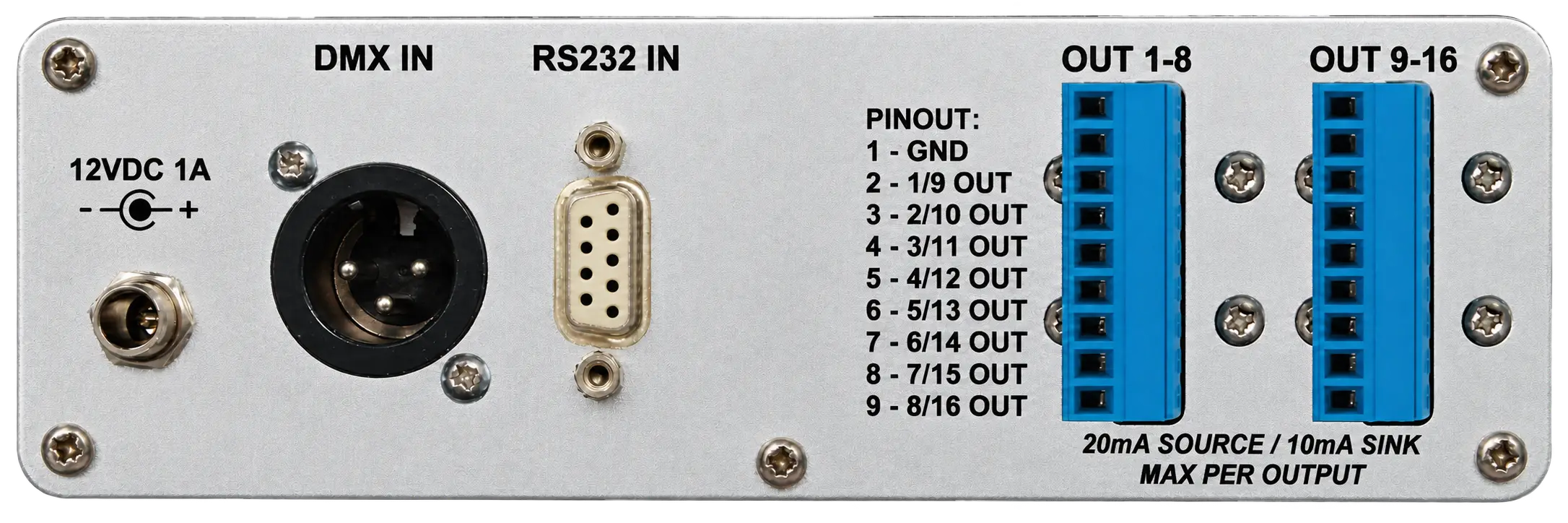

RS232 DB9 Connections: Pin 2 RX, Pin 5-gnd, pin 3-TX data, pin 8-CTS (Clear to Send-Optional)
Data Output: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 – Power supply common, Pin 2 Data -, Pin 3 Data +]
RDM: No
Internal Fuse RS232 Converter PCB: 500mA SMT
Internal Fuse 0-10V PCB: SMT 750mA
Power Input: +12VDC apx 400mA (values apx, some circuits may vary)
8 Channel: no load 70mA full load 230mA
16 Channel: no load 82mA full load 402mA
Voltage Output: 0~10VDC, (500 ohm minimum load)
Source Output Current: 20mA Max each
Data Type: DMX (250Khz)

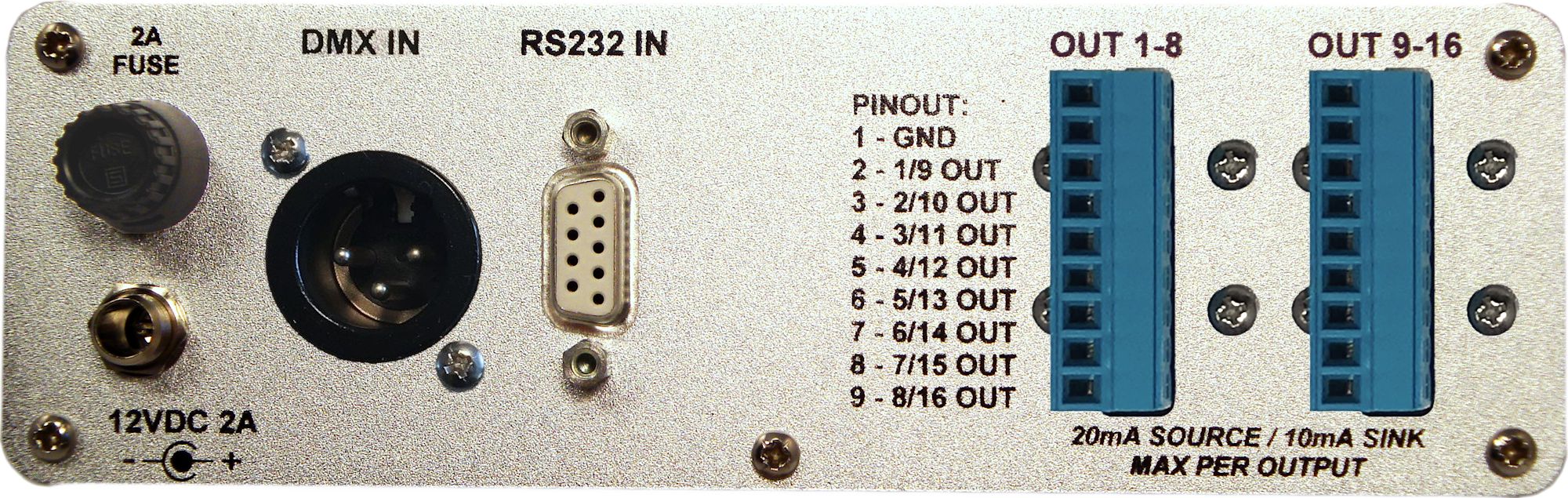

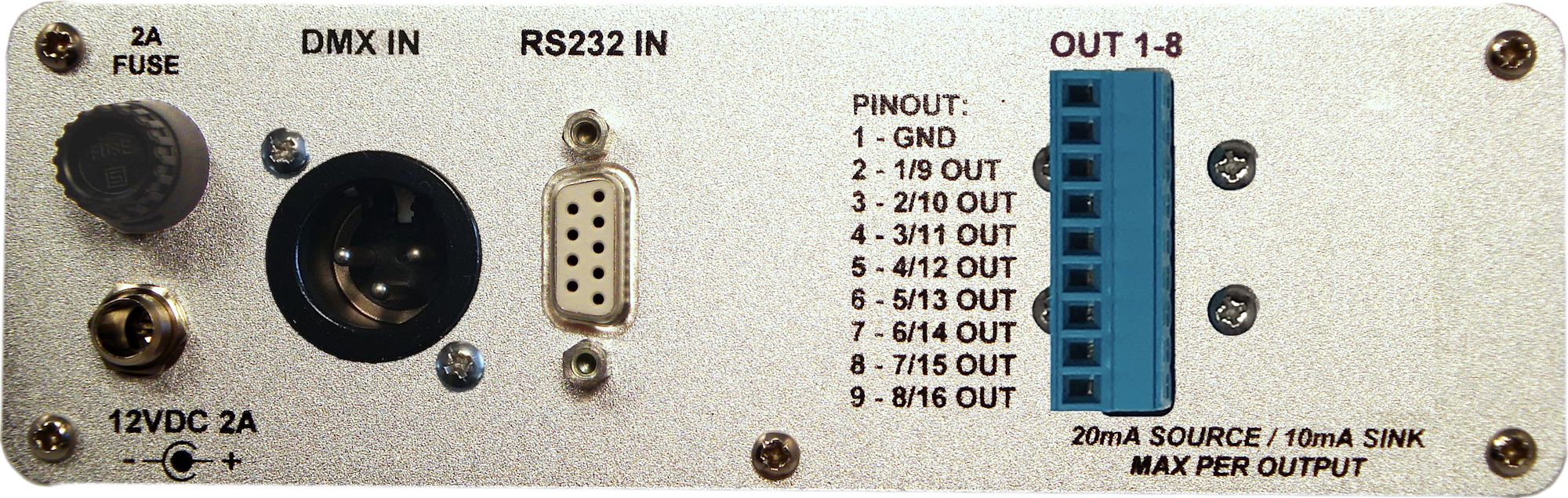

Data Input: 5 (or 3) pin female XLR, [Pin 1 Not connected, Pin 2Data -, Pin 3 Data +]
RDM: No
Weight: 1.5 pounds
Operating temperature: 32°F to 100°F
Storage temperature: 0°F to 120°F
Refresh Rate Per Second: 8 Ch’s = 571, 16 Ch’s = 285 (amount of times per second the outputs are updated)
External Power Supply:
