Quick Specs
| Input Protocol | DMX512 |
| Relay Capacity | 15A Per Relay |
| Relay Connectors | PowerCon |
| Timer/Monitor Relay | RDM Only |
| Application | Lighting & Automation Control |
| Power Supply | 12VDC Included |

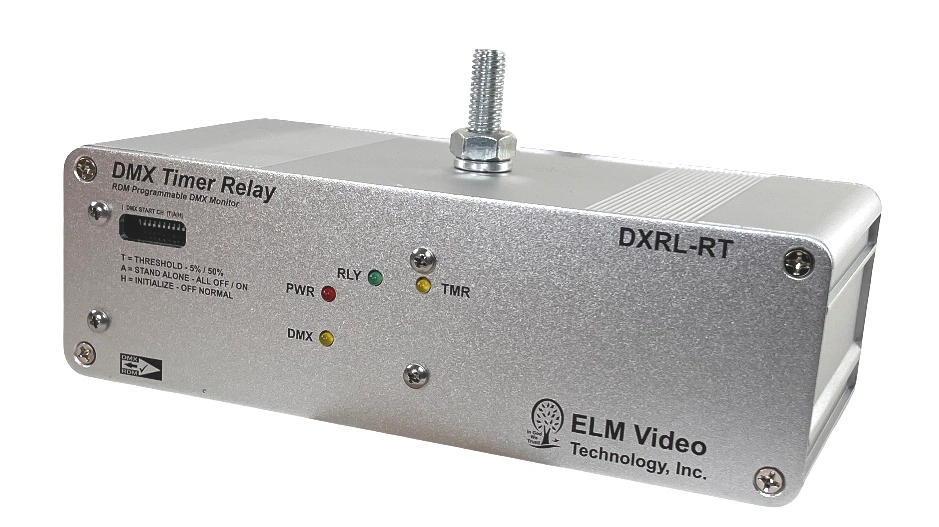

The DXRL-RPT is a DMX to relay driver, RDM compliant 1.20 in a desktop or truss mount enclosure. Via RDM the relay can be enabled to monitor a range of DMX channels above 6%/below 4%. If any DMX channels in the programmed range is 6%+ the relay will turn on. If all of the DMX channels are 4% or less the timer will start and the Time Out Timer LED will blink indicating the timer is active. The RDM programmed time range from 0-6 hours, programmed in seconds from 0-21,600 seconds. Note all of the timer relay settings requires an RDM interface to program all of these settings. The front dip switches are the DMX start channel (for relays if more than 1)/0-10V, relay trip threshold 5%/50%, and 0-10V variable or switch option.

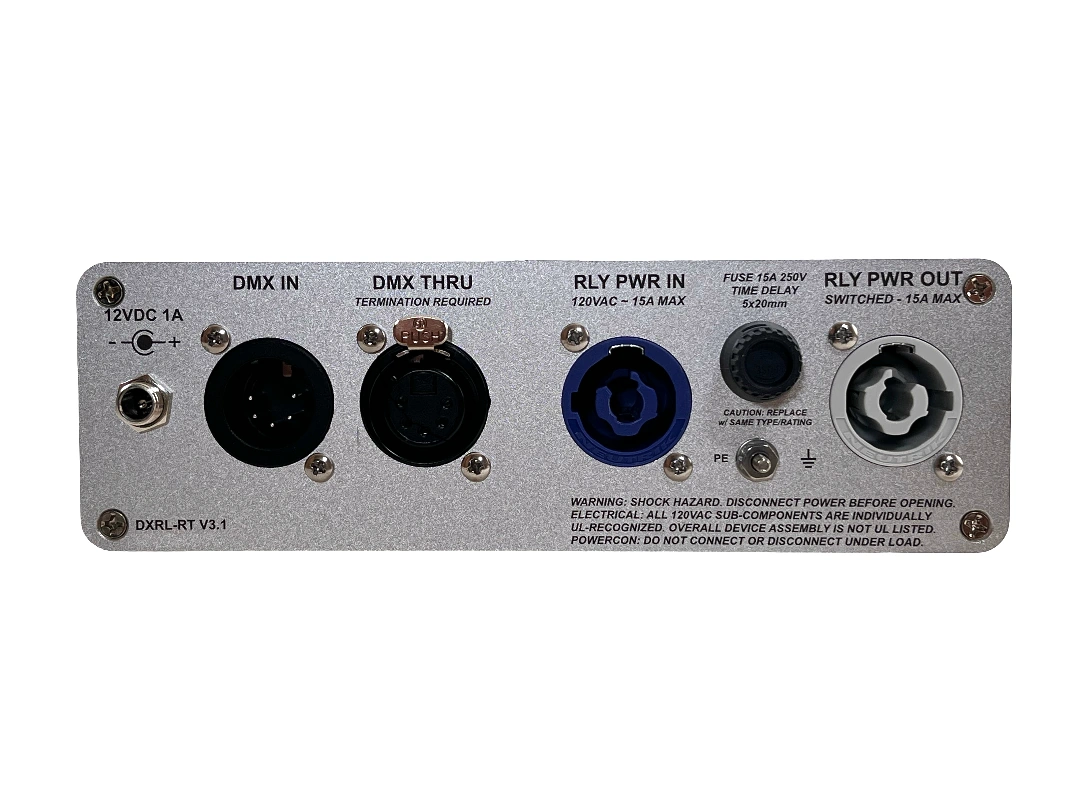

The relay I-O connections are PowerCon style: Blue is input, Grey is output and rated at no more than 15A 120VAC. The mating connectors and cables are not included, these must be customer supplied. The units electronics requires a 12VDC wall style power supply which is included.
DXRL-RPT DMX Relay Driver Users Guide
Revisions: July 2026 V3.10
SV3.10: Beta Release July 2026
- DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained. NEVER use DMX data devices for pyrotechnics or similar controls.
- MANUFACTURER: ELM Video Technology
- PRODUCT NAME: DMX Relay RDM Monitor Timer w/ optional 0-10 Volt
- MPN: DXRL-RPT
- MODEL: DXRL-RPT-xx
- INTERNAL RELAY (Optional) MAX CURRENT: 15 AMPS Each
- INTERNAL RELAY (Optional) MAX VOLAGE: 120VAC
- +12VDC PCB INPUT FUSE: SMT 1A Slow
- POWER INPUT CURRENT: 1030mA (65mA + [8] relay’s closed at 100mA ea, + [8] 0~10 volt outputs at 20mA)
- PCB RELAY OUTPUT CURRENT (SINK/GROUND DRIVE): 100mA Max each at +12VDC
- 0~10V SOURCE OUTPUT CURRENT: 20mA Max each (500 ohm minimum load)
- 0~10V SINK OUTPUT CURRENT: 10mA Max each
- DATA TYPE: DMX512 (250Khz) [Pin 1 Shield (not connected on input), Pin 2 Data -, Pin 3 Data +]
- DIMENSIONS: 2.1″ H x 6.7″ W x 4.1″ D
- WEIGHT: 1.5 pounds
- AMBIENT TEMPERATURE MAX: 32°F to 85°F
- PCB AND RELAY OPERATING TEMPERATURE MAX: 32°F to 125°F (Air cool if necessary)
- STORAGE TEMPERATURE: 32°F to 120°F
- HUMIDITY: Non condensing
- 0-10V (option) REFRESH RATE: 571 per second w 8 channels (amount of times per second the outputs are updated)
- POWER SUPPLY: +12VDC wall mount (UL listed)
- Voltage Input: 100 ~ 132 (or 240) VAC
- Current Output (Min): 1-2 Amp single relay, 2 Amps 3+
- Power (Min): 12 or 24 Watts
- Polarization: Positive Center
- Output Connector: Locking Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
RELAY SPECIFICATIONS IF EQUIPPED WITH FACTORY INSTALLED RELAYS:
- RELAY VOLTAGE MAX: 120VAC
- RELAY CURRENT MAX: 15 Amps each
- UL LISTINGS: +12VDC power supply and pre populated PCB, PowerCon connectors, 120VAC Fuse holder are UL listed, (populated PCB: NO, Enclosed unit: NO)
- RELAY APPROVALS: UL E58304; CSA LR48471
- RELAY CONTACT DATA: Contact arrangement: 1 form A (NO) 16A, 1 form B (NC) 10A, 1 form C (CO)
- RELAY CONTACT MATERIAL: AgSnOInO, AgCdO
- RELAY MIN RECOMMENDED CONTACT LOAD: 1A, 5VDC or 12VAC
- RELAY FREQUENCY OF OPERATION: with/without load 360/3600hr
- RELAY OPERATE/RELEASE TIME MAX, including bounce: 15/15ms
- RELAY MECHANICAL ENDURANCE: 10×106 operations
Basic unit: DMX to 1 Channel Internal Relay
- Add [8] 0-10 Volt Outputs (Includes mating phoenix style connector)
- DMX In/Out 3 or 5 pin XLR
- Relay In/Out PowerCon (Blue IN / Grey OUT) – Attached/mating connectors and cables customer supplied
- Truss mount bracket(s). 1 bracket is enough to support the the unit. 2 brackets offer additional support and prevents spinning
