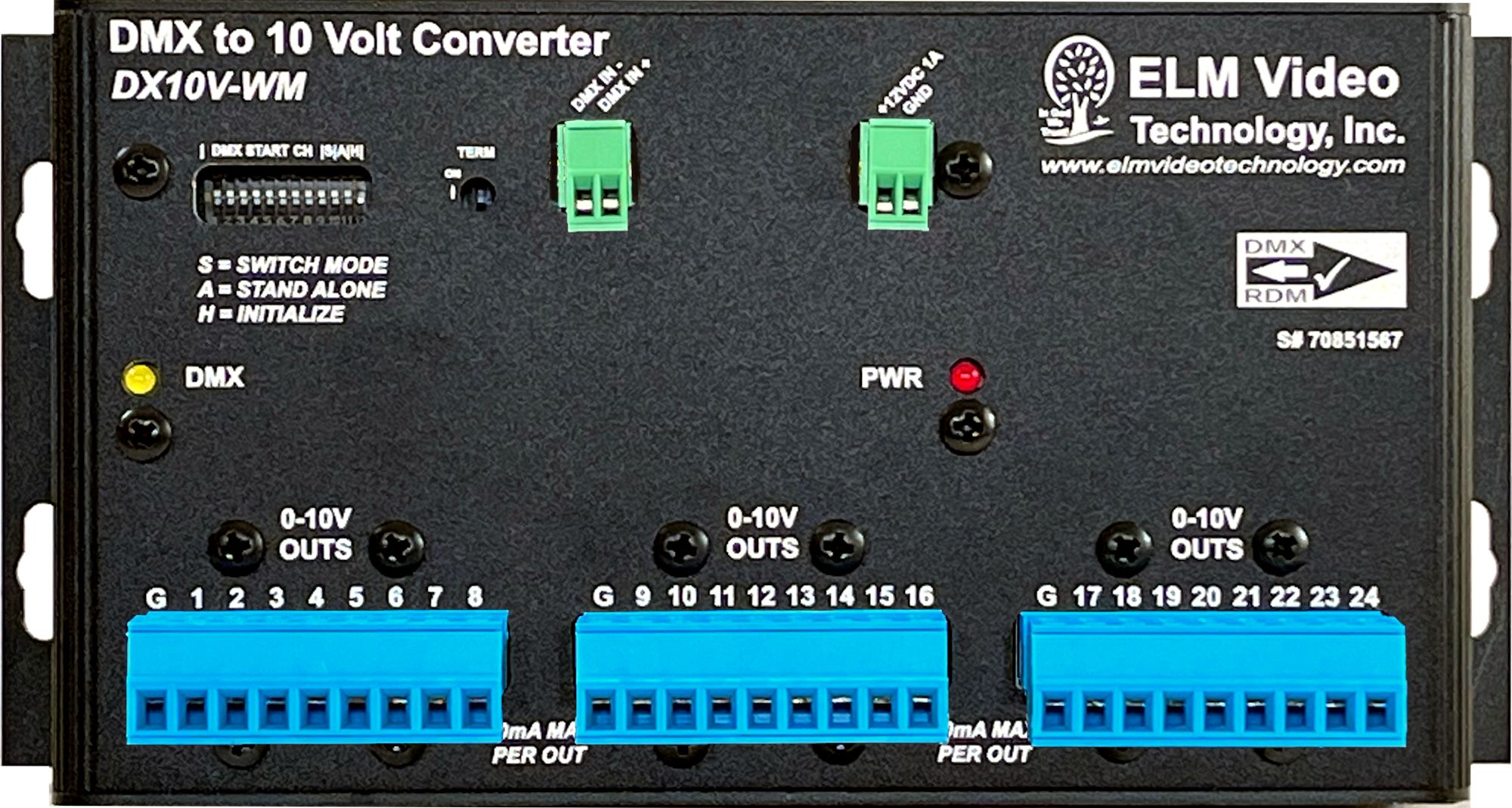

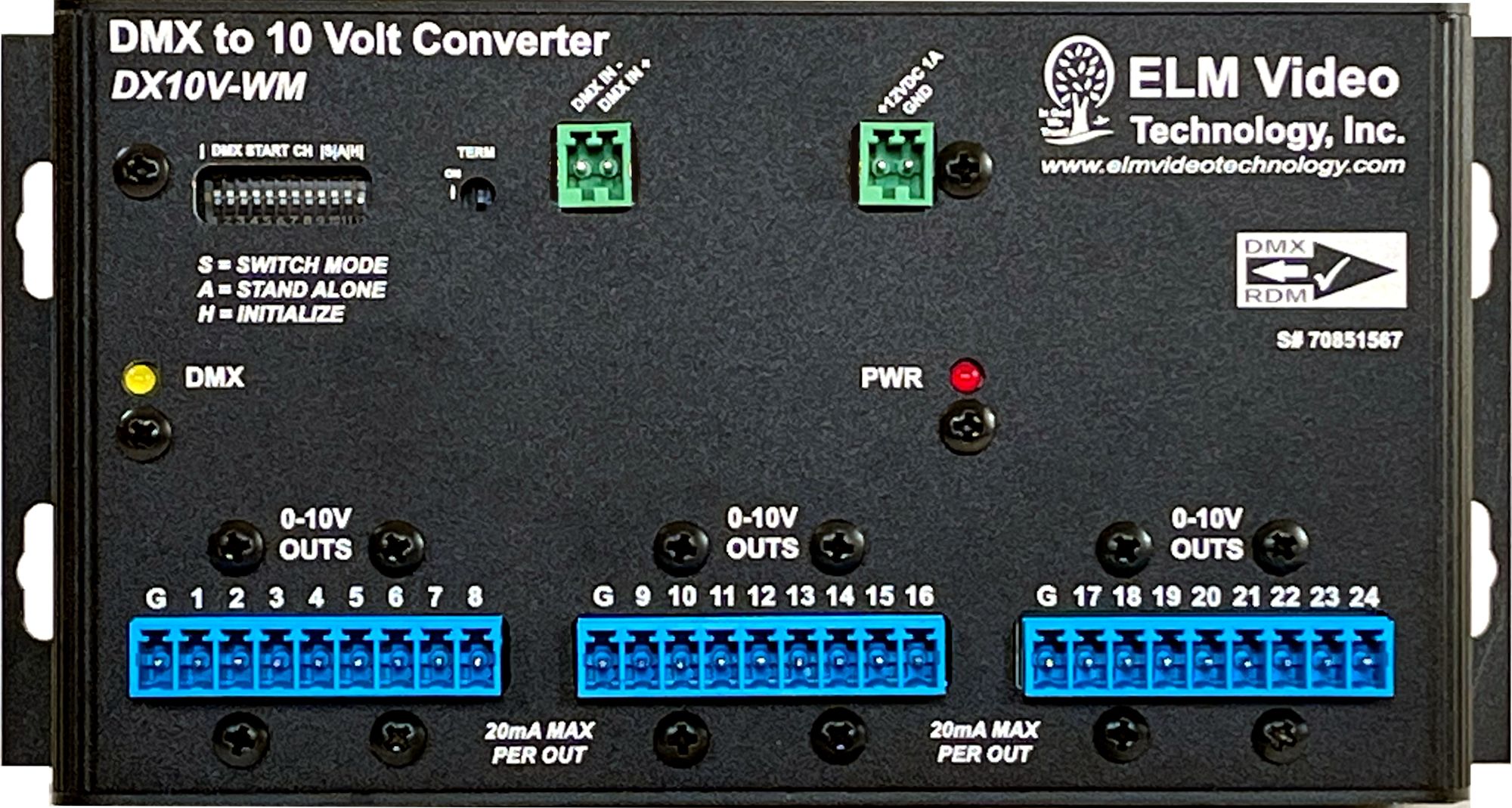

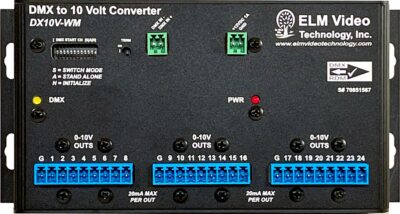

The DX10V-WM is a DMX to 0 10 volt converter in a wall mount aluminum enclosure and phoenix screw terminal […]
$329.00
The DX10V-WM is a DMX to 0 10 volt converter in a wall mount aluminum enclosure and phoenix screw terminal block style connections. For circuit functions and specifications refer to our DX10V unit. Available with 8, 16 or 24 0-10 volt outputs, or 8 outputs with the switch to ground functionality (DX10V-SG-PCB).
Includes +12VDC external power supply.
| Weight | 19 oz |
|---|---|
| Dimensions | 3 × 6.2 × 1.3 in |
| DX10V Add Ons | 16 Channel, 24 Channel, 8 Channel, Switch to Ground Function (8 Channel Only) (see options tab) |
Dimensions: 3″ x 6.2″ x 1.3″ (inches)
See the specifications tab DX10V for additional information
