• 5VDC Power Supply - Needed if used as an independent module

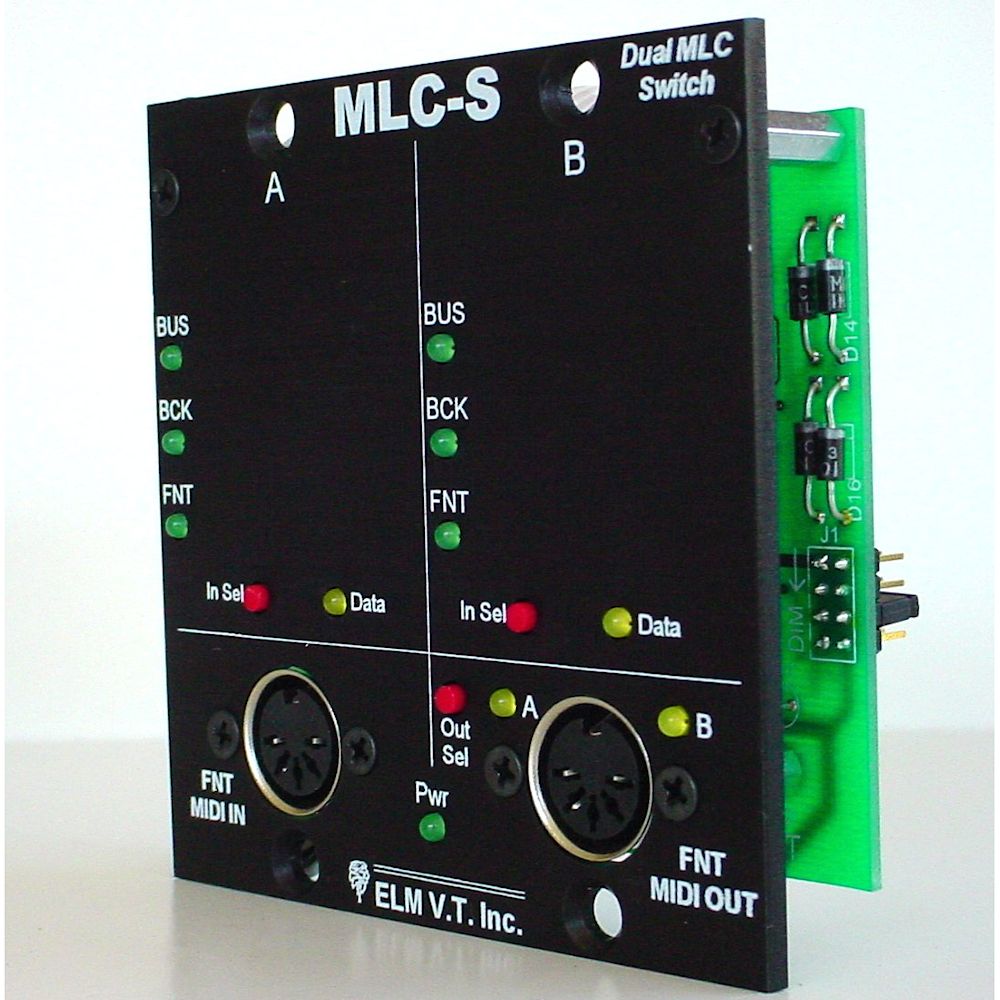

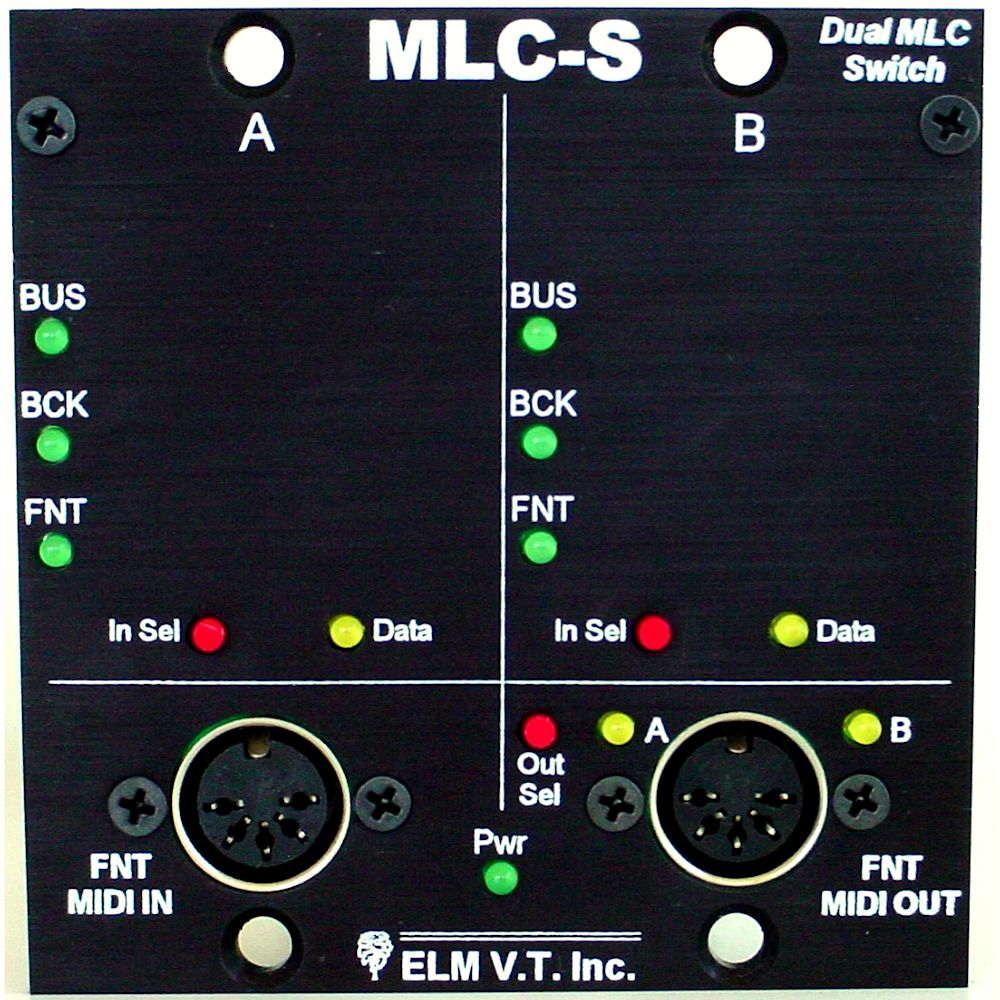

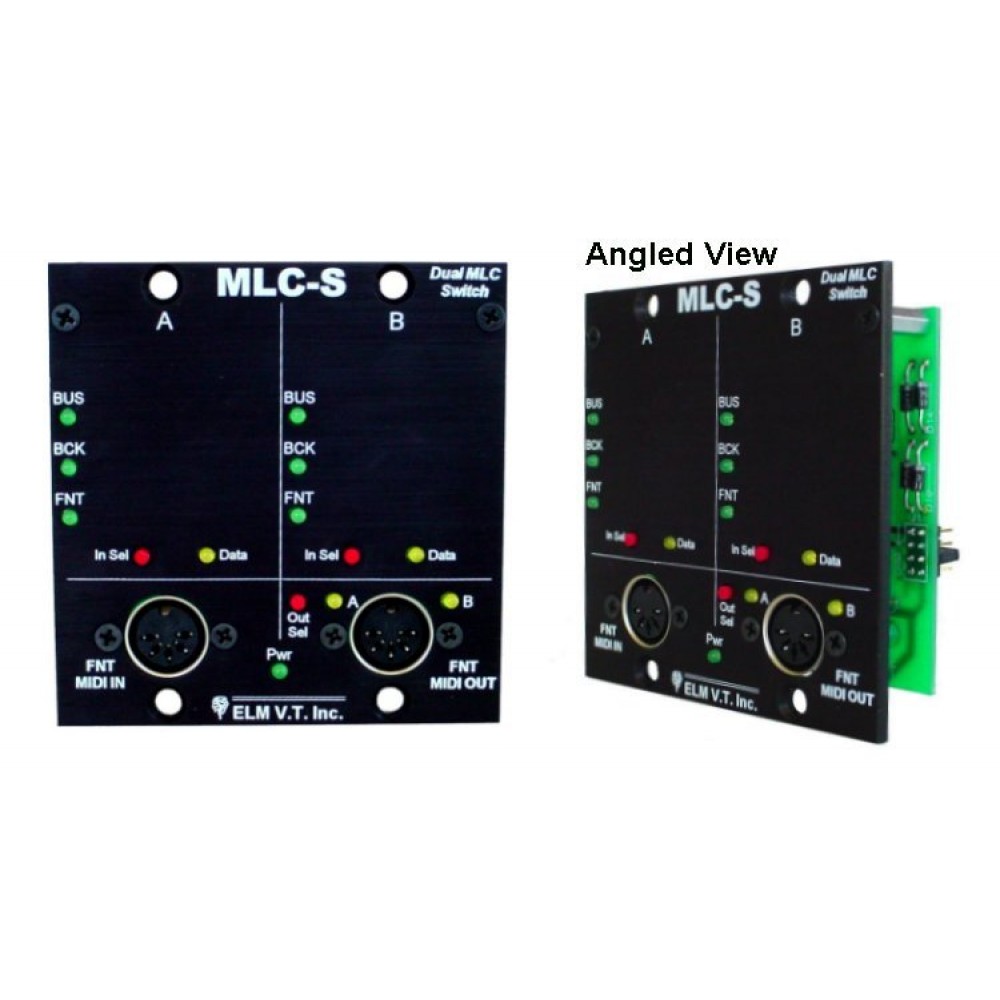

he MLC-S is an optional module for the MLC module. Adds features and allows the MLC to be mounted to the back of the chassis for easier cable management. Optionally the MLC-S module mounts on the front of the chassis and would mate directly to the MLC. The MLC-S has selector switches to select BUS, MLC, or FRONT inputs. The MLC-S has a data indicator LED to show traffic on the selected input and an additional output to tap/test the data on either the A or B side of the module. See the MIDI EXTENDER PAGE for more information.


MLC-S FEATURES INCLUDE:

  • Mates Directly to an MLC Module
  • DUAL (2) Circuits in 1 module
  • Electronic Selectable Inputs (3)
  • Power, Data, and Selected Input LED Indicator
  • Labeling Space
  • Front Accessible MIDI Input and Output




Midi Extender Companion

  • $149.00


  • 2 or more $139.00

Available Options
