- DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained.
- NEVER use DMX data devices for pyrotechnics or similar controls.
- Brand: ELM Video Technology
- Manufacturer: ELM Video Technology
- Model: DTR-PCB
- Description: DMX Tester / Analyzer
- Non-Volatile Memory Writes: Minimum 100K, Typical 1M
- Non-Volatile Memory Retention: Minimum 40 Yrs, Typical 100 Yrs

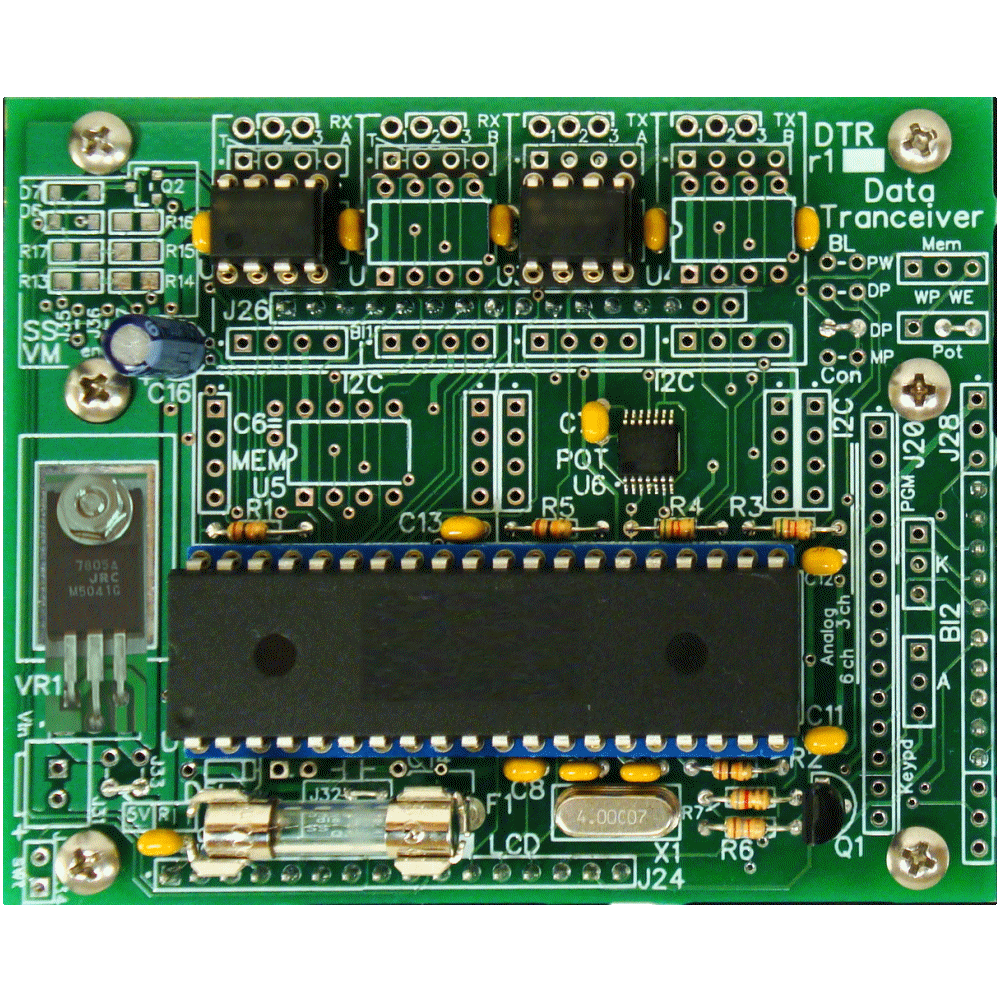

- Data Output: DMX512 output 250 kHz, [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +
- RDM: No
- Weight: apx 3oz
- External Power Input +5VDC or +7~9VDC
- Power Connector Optional: 5.5 x 2.1 x 9.5 center positive connector
- Internal FUSE: 500mA 5x20 mm
- Size: 3.35" W x 2.75" (4.9" with (4) Btn PCB attached) H x 1.62"
- (4) Button PCB Dimensions: 1.65" W x 1.14" H x .94"
- POWER: Apx 132mA Rx and Tx Active,
- Back light=0,
- 140mA back light=25%,
- 161mA back light=50%,
- 170mA back light=75%,
- 173mA back light=100%
- Screw terminals
- 5VDC or 12VDC input options
- 5V or 12V Power Supply
The DTR-PCB is a DMX 512 tester data send / receive PCB with 10 store and recall preset scene snapshot features. See the DTR-HH page or users guide for more information.
FEATURES INCLUDE:
- 10 Recordable and Recall Preset Scene Snapshots
- Customizable PCB
- Decimal, Hexadecimal, and Percentage Display Options
- Statistics Display (packet size, start code, and rate or (frequency))
- Editable Packet Size and Start Code
- Programmable Channel Offset
- Easy Editing of Stored Scene Snapshots

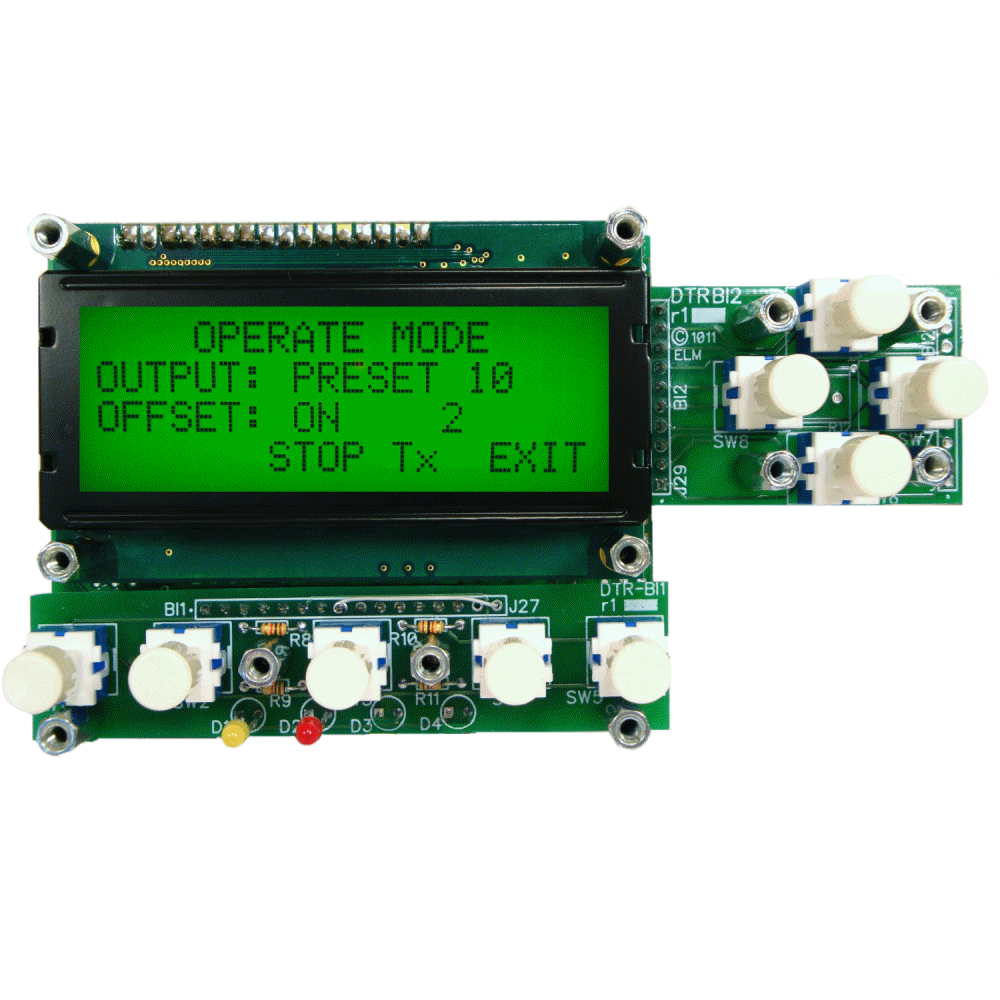

- 20x4 Line LCD (Liquid Crystal Display)
- Programmable Backlight and Contrast Adjustments
- 5V or 7~15VDC Input Range
DTR PCB INCLUDES:

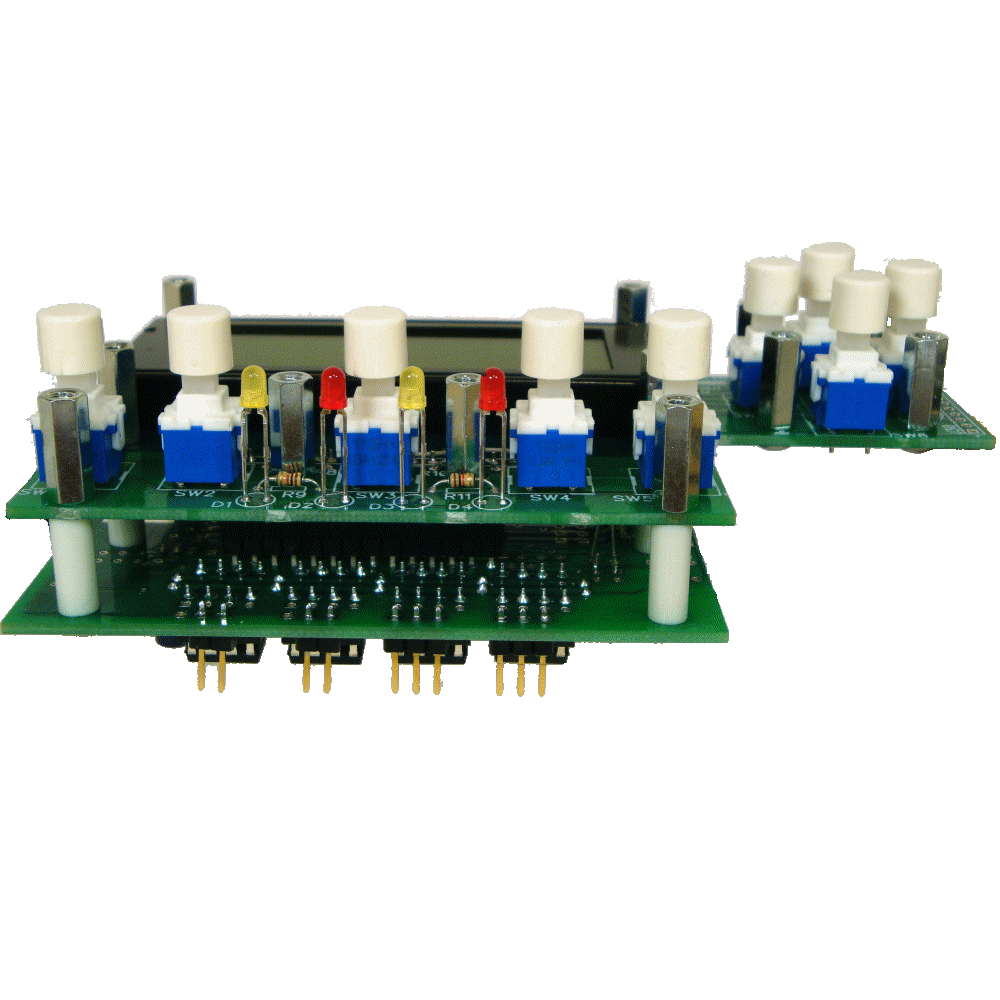

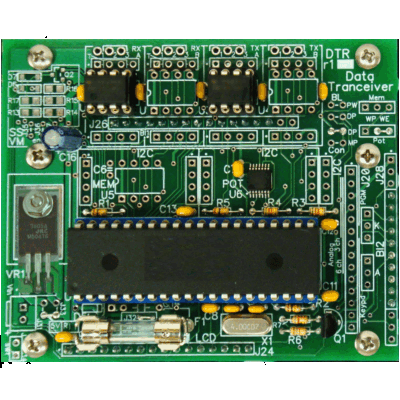

- Assembled DTR-PCB (Printed Circuit Board) with .5" standoffs and screws

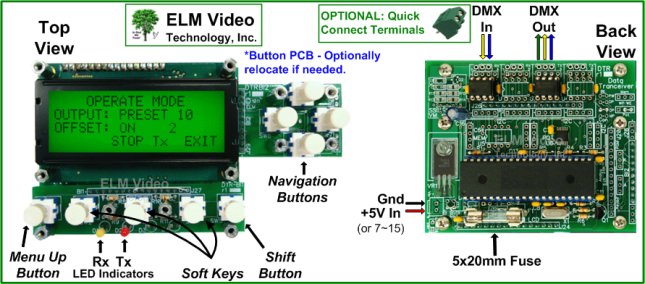

- Drill Template and Wiring Diagram
- (1) 120 ohm Terminating Resistor
- Clear Bezel (large window enclosure LCD cover)
DMX Tester PCB
- Brand: ELM Video Technology, Inc.
- Product Code: DTR-PCB
- Availability: Usually Ships in 1-2 Days
-
$198.00
-
- 5 or more $188.00
- 10 or more $178.00
