DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained. NEVER use DMX data devices for pyrotechnics or similar controls.


  • Manufacturer: ELM Video Technology
  • Name:         DMX 0 to 10 Volt Analog Converter
  • Description: Converts a DMX-512 input to a variable 0 to 10 volt analog output
  • Model/MPN (base): DX10V
  • UL Listings: Power supply and PCB pre populated
  • CHASSIS: Anodized Aluminum .093" thick RoHS compliant
  • Internal Fuse:         SMT 1A
  • Power Input: +12VDC (apx)
  •     4 Channel:   no load:64mA   full load 145mA
  •     8 Channel:   no load 70mA   full load 230mA
  •     16 Channel: no load 82mA   full load 402mA
  •     24 Channel: no load 94mA   full load 574mA
  • Voltage Output: 0~10VDC, (500 ohm minimum load)
  • Source Output Current: 20mA Max each
  • Sink Output Current: 10mA Max each
  • DATA TYPE:            DMX (250Khz)
  • RDM: YES – Responder - E1.20 Compliant [Software V8.20+]
  • Data Input: 5 (or 3) pin male XLR
  •         [Pin 1 Not connected, Pin 2 Data -, Pin 3 Data +]
  • Data Loop Output: (If equipped) 5 (or 3) pin female XLR,
  •         [Pin 1 Looped from pin 1 of input XLR, Pin 2 Data -, Pin 3 Data +]
  • Dimensions: 3.7 x 6.7 x 2.1 inches
  • Weight:         1.5 pounds
  • Operating temperature: 32°F to 100°F
  • Storage temperature: 0°F to 120°F
  • Humidity: Non condensing
  • Refresh Rate Per Second:
  • Version 7: 4 Ch's = 3067, 8 Ch's = 1512, 12 Ch's = 1022, 16 Ch's = 746
  • Version 8: 8 Ch's = 1502, 16 Ch's = 739, 24 Ch's = 506
  • (amount of times per second the outputs are updated)

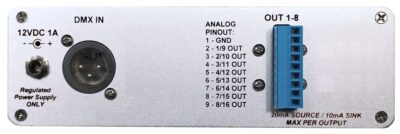

  • Output Connections: 9 Pin terminal block
  • External Power Supply: +12VDC wall mount
  •     Voltage Input: 100 ~ 132 (or 240) VAC
  •     Current Output: 1 Amps
  •     Power:         12 Watts
  •     Polarization: Positive Center
  •     Output Connector: Locking Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm


[Short/shunt to ground option]:

  • Relay Type: Mechanical
  • Relay Life Cycle: 10M operations at 85°C, 2 Hz
  • Relay Operating Time: Approximately 2 milliseconds (Capacitive debounced)
  • Relay Release Time: Approximately 1 milliseconds (Capacitive debounced)
  • 3 or 5 pin XLR or Ethercon connectors - 1, 2, or 3 Universes per EtherCon (See: EtherCon Pinouts)

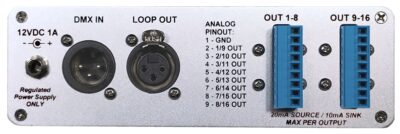

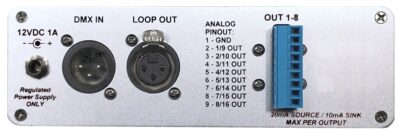

  • Equipped with a single DMX input, optionally add a loop thru with 3 or 5 XLR connectors (terminate if unused)

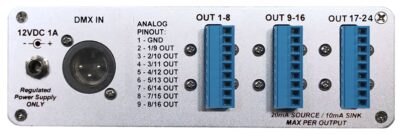

  • Equipped with 8 outputs, optionally add an additional 8 or 16 outputs (for a total outputs of 16 or 24). Or an 8 channel with Switch to Ground function. Uses reed relay's to short the 0-10V output to ground when the respective DMX level is below 5%. For more information see the DX10V-SG-PCB page.
  • Mounting flanges - allows the unit to be counter top, under counter, or wall mounted



**NEW** Now RDM E1.20 Compliant. Remotely setup and modify changes with an RDM Controller.

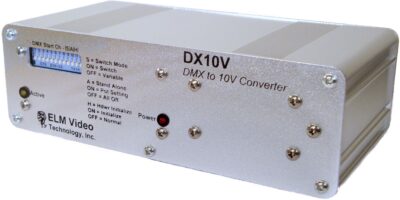

The DX10V converts/decodes a DMX-512 input to a variable 0 to 10 volt analog output. Control 0-10 volt LED drivers or dimmers, for example, from a DMX lighting board or DMX controller. Also has a 'switch' option for controlling solid state relay's (SSR). Each output can source up to 20mA and sink up to 10mA. Each output is assigned to a consecutive DMX channel and will vary from 0 to 10 volts in respect to the corresponding DMX channels' level. Standard unit has 8 channels, available with 16 channels. Includes power supply. See the DX10V 0-10 volt full description category page for more information. Note: If custom output voltages are required, most can be preset, for example 0-5 volts, 0-20 volts, 0-24 volts etc-contact us for custom voltages.
